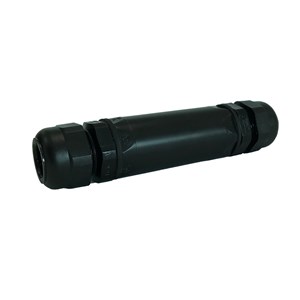

788/ESKV25 Black IP68 Jointing sleeve

Luckins No: 436878783

Carbon Foot Print:

0.25(PCF kg/piece)

Colour:

BLACK

EAN Number:

4007686294682

Glow wire test:

750 iC

Group:

Jointing Sleeves

Key width SW1:

27 mm

Key Width SW2:

29 mm

Material:

Polypropylene

Material Cable Gland:

Polyamide

Ø cable diameter max:

17 mm

Ø cable diameter min:

9 mm

Packing unit:

15

Product Colour:

RAL 9005

Protection Class:

IP68 (5 bar 30 min)

Stock:

Out of Stock

Temp. range max:

85 iC

Temp. Range Min:

-30 iC

Terminals/Poles:

5 x 2,5 mm²

Total length TL:

10112268, 134 mm

Item Number: 10112268

Trade Price: £7.76
