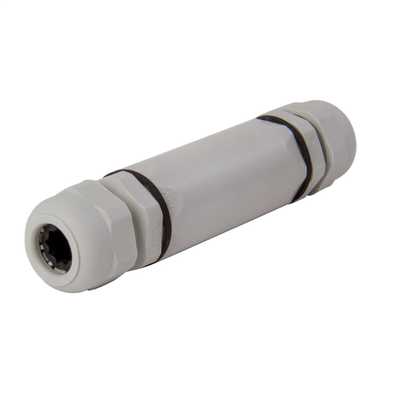

788/ESKV Grey IP68 Jointing Sleeve

788/SKV16 Grey IP68 Jointing sleeve

Jointing Sleeve - 788/ESKV 25 - 24A

Protection class - IP68

Temperature range - -20°C - 60°C

Installation temp - -5°C - 60°C

Voltage - 690V

Material - Polystyrene, flame-retardant

Luckins No: 436878770

Carbon Foot Print:

0.27(PCF kg/piece)

Colour:

Grey

EAN Number:

4007686294651

Glow wire test:

750 iC

Group:

Jointing Sleeves

Key width SW1:

27 mm

Key Width SW2:

29 mm

Material:

Polypropylene

Material Cable Gland:

Polyamide

Ø cable diameter max:

17 mm

Ø cable diameter min:

9 mm

Packing unit:

15

Product Colour:

RAL 7035

Protection Class:

IP68 (5 bar 30 min)

Size:

ESKV 25

Stock:

In-Stock

Temp. range max:

85 iC

Temp. Range Min:

-30 iC

Terminals/Poles:

5 x 2,5 mm²

Total length TL:

10112267, 134 mm

Item Number: 10112267

Trade Price: £7.76

Size:

Colour:

Quantity:

Please login

Jointing Sleeve - 788/ESKV 25 - 24A

Protection class - IP68

Temperature range - -20°C - 60°C

Installation temp - -5°C - 60°C

Voltage - 690V

Material - Polystyrene, flame-retardant

Luckins No: 436878770

Carbon Foot Print:

0.27(PCF kg/piece)

Colour:

Grey

EAN Number:

4007686294651

Glow wire test:

750 iC

Group:

Jointing Sleeves

Key width SW1:

27 mm

Key Width SW2:

29 mm

Material:

Polypropylene

Material Cable Gland:

Polyamide

Ø cable diameter max:

17 mm

Ø cable diameter min:

9 mm

Packing unit:

15

Product Colour:

RAL 7035

Protection Class:

IP68 (5 bar 30 min)

Size:

ESKV 25

Stock:

In-Stock

Temp. range max:

85 iC

Temp. Range Min:

-30 iC

Terminals/Poles:

5 x 2,5 mm²

Total length TL:

10112267, 134 mm
