788/SKV Grey IP68 Jointing Sleeve (SKV16/SKV21)

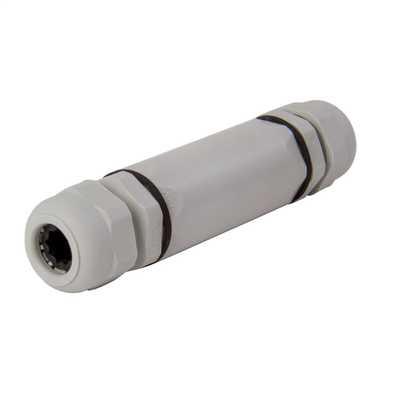

788/SKV16 Grey IP68 Jointing sleeve

Jointing Sleeve - 788/SKV 16 - 24A

Protection class - IP68

Temperature range - -20°C - 60°C

Installation temp - -5°C - 60°C

Voltage - 690V

Material - Polystyrene, flame-retardant

Luckins No: 436878796

Carbon Foot Print:

0.21(PCF kg/piece)

Colour:

Grey

EAN Number:

4.00769E+12

Group:

Jointing Sleeves

Key width SW1:

27 mm

Key Width SW2:

29 mm

Material Cable Gland:

Polyamide

Number of cables:

0

Ø cable diameter max:

17,0 mm

Ø cable diameter min:

9,0 mm

Object Number:

10112269

Packing unit:

15

Protection Class:

IP68 (5 bar 30 min)

Size:

SKV16

Stock:

Out of Stock

Temp. range max:

85 ¡C

Temp. Range Min:

-30 ¡C

Terminals/Poles:

3 x 4 mm_

Total length TL:

134,0 mm

Item Number: 10112269

Trade Price: £9.62

Size:

Colour:

Quantity:

Please login

Jointing Sleeve - 788/SKV 16 - 24A

Protection class - IP68

Temperature range - -20°C - 60°C

Installation temp - -5°C - 60°C

Voltage - 690V

Material - Polystyrene, flame-retardant

Luckins No: 436878796

Carbon Foot Print:

0.21(PCF kg/piece)

Colour:

Grey

EAN Number:

4.00769E+12

Group:

Jointing Sleeves

Key width SW1:

27 mm

Key Width SW2:

29 mm

Material Cable Gland:

Polyamide

Number of cables:

0

Ø cable diameter max:

17,0 mm

Ø cable diameter min:

9,0 mm

Object Number:

10112269

Packing unit:

15

Protection Class:

IP68 (5 bar 30 min)

Size:

SKV16

Stock:

Out of Stock

Temp. range max:

85 ¡C

Temp. Range Min:

-30 ¡C

Terminals/Poles:

3 x 4 mm_

Total length TL:

134,0 mm
