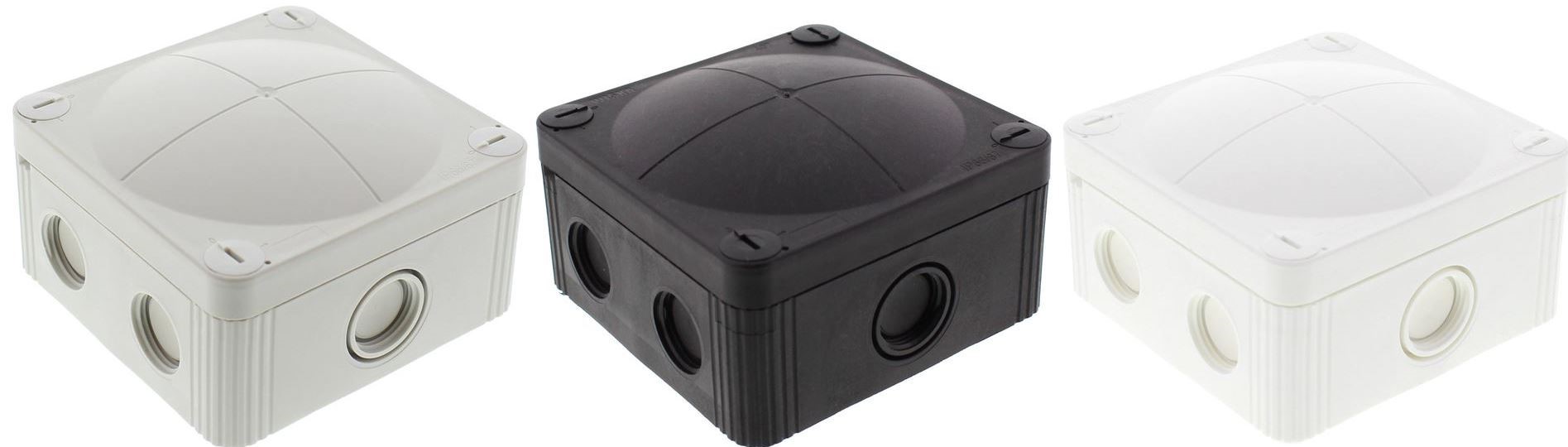

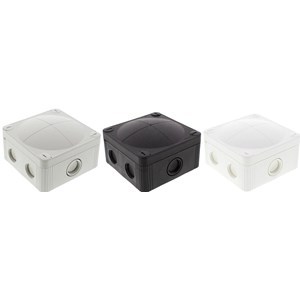

COMBI 407/Empty (no Terminal) Black/White/Grey

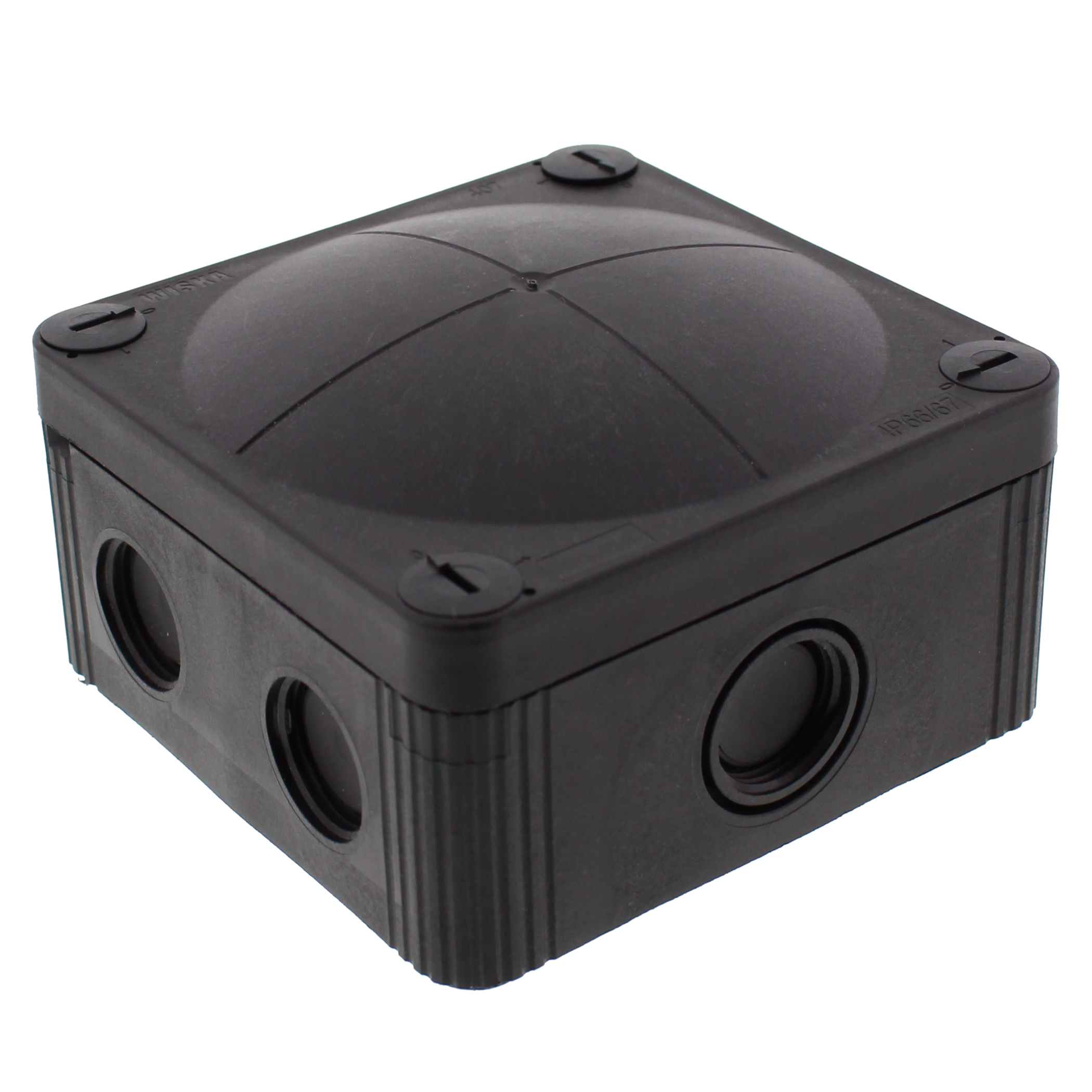

COMBI 407/5/B IP66/67 Black Junction box c/w 32A T/B

COMBI 407/Empty Black
95 x 95 x 60 mm
IP66/67
Glow wire test - 750°C
Temperature range - -30°C - 100°C
7 x 20mm threaded entries / 1 x 25mm knockout
Material - Polypropylene, Gasket: TPE

Luckins No: 401406449

Carbon Foot Print:

0.31(PCF kg/piece)

Colour:

BLACK

External dimensions LxWxH:

95 x 95 x 60mm

Filling compound:

Fixing:

4 internal openings

Glow wire test:

750 ¡C

Group:

COMBI Junction Boxes

Impact resistance:

Notice:

Ø cable diameter min:

3,0 mm, 12,0 mm

Packing unit:

Protection Class:

IP66 / IP67

Rated cross section:

4 mm_

Size:

407

Stock:

In-Stock

Temp. range max:

100 ¡C

Terminals/Poles:

Type:

COMBI 407 BK

Voltage:

690,0 V

Item Number: 10105601

Trade Price: £7.36

Size:

Colour:

Quantity:

Please login

COMBI 407/Empty Black
95 x 95 x 60 mm
IP66/67
Glow wire test - 750°C
Temperature range - -30°C - 100°C
7 x 20mm threaded entries / 1 x 25mm knockout
Material - Polypropylene, Gasket: TPE

Luckins No: 401406449

Carbon Foot Print:

0.31(PCF kg/piece)

Colour:

BLACK

External dimensions LxWxH:

95 x 95 x 60mm

Filling compound:

Fixing:

4 internal openings

Glow wire test:

750 ¡C

Group:

COMBI Junction Boxes

Impact resistance:

Notice:

Ø cable diameter min:

3,0 mm, 12,0 mm

Packing unit:

Protection Class:

IP66 / IP67

Rated cross section:

4 mm_

Size:

407

Stock:

In-Stock

Temp. range max:

100 ¡C

Terminals/Poles:

Type:

COMBI 407 BK

Voltage:

690,0 V

COMBI 407/Empty (no Terminal) Black/White/Grey
