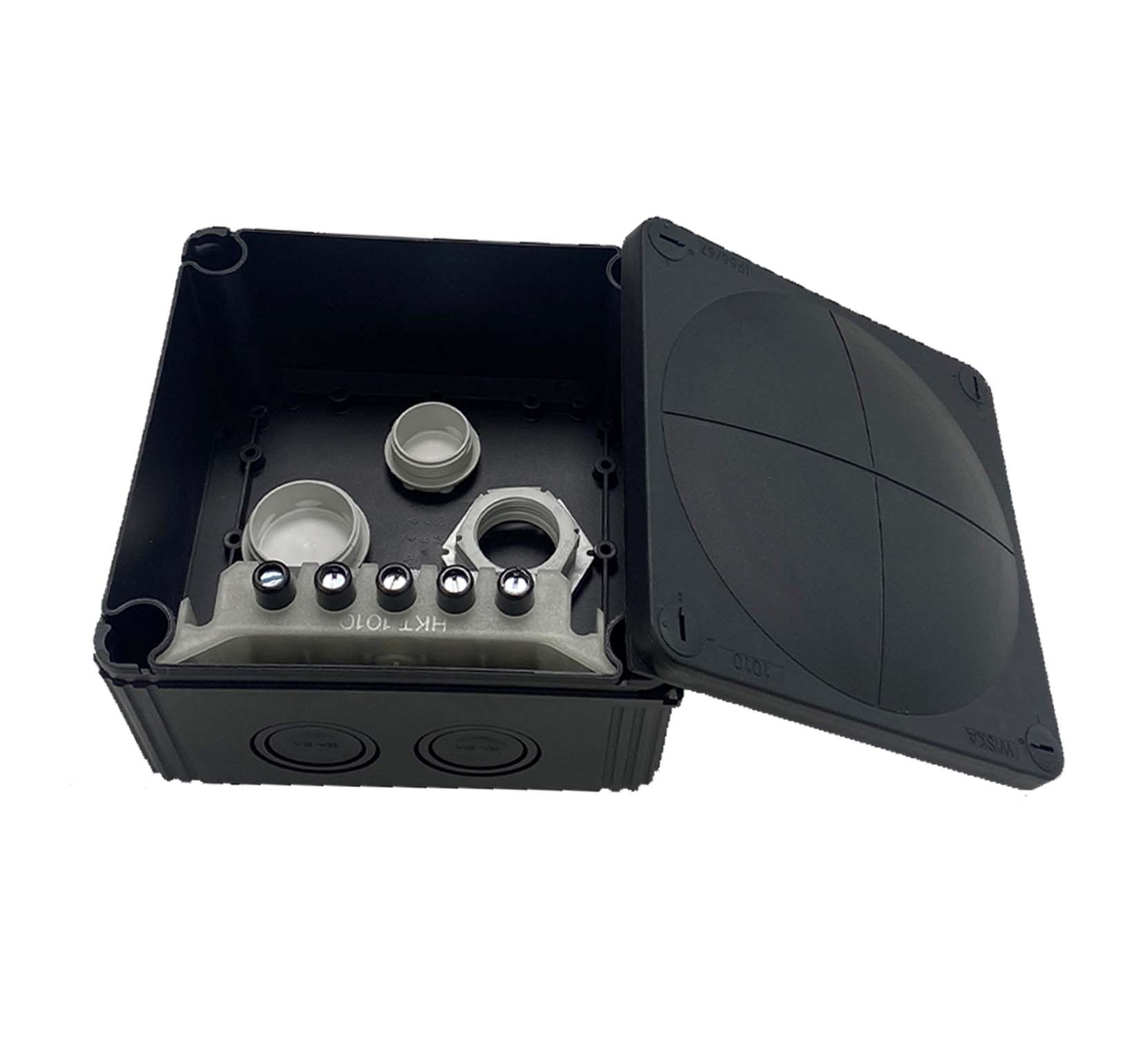

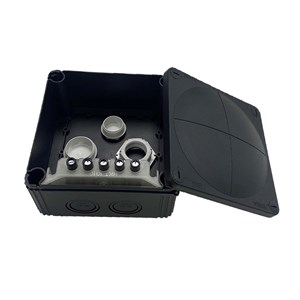

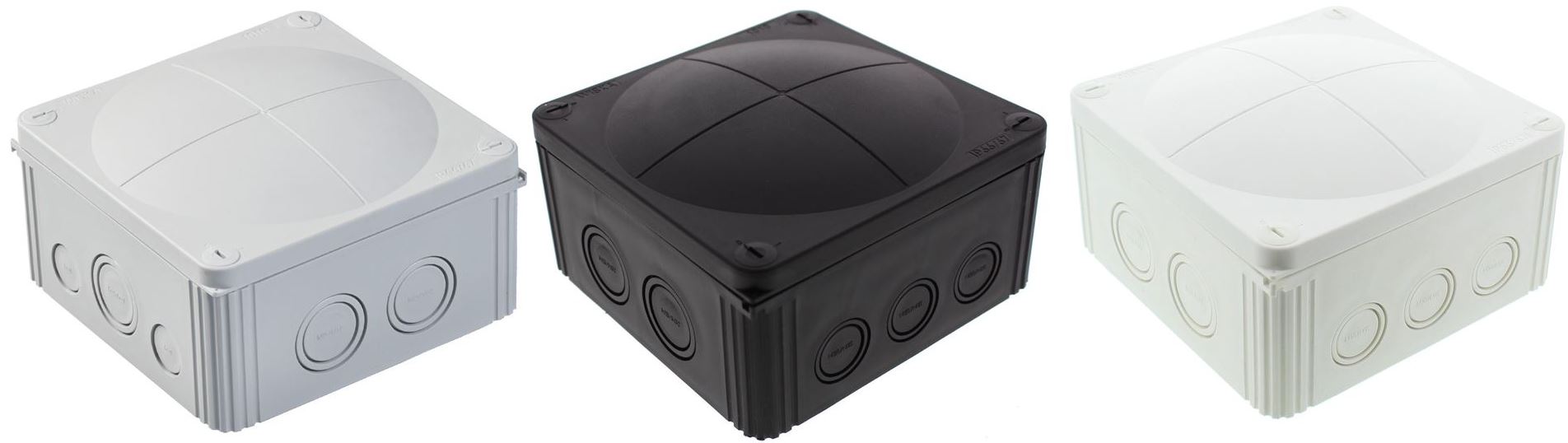

COMBI 1010/5 (With Terminal) Black/White/Grey

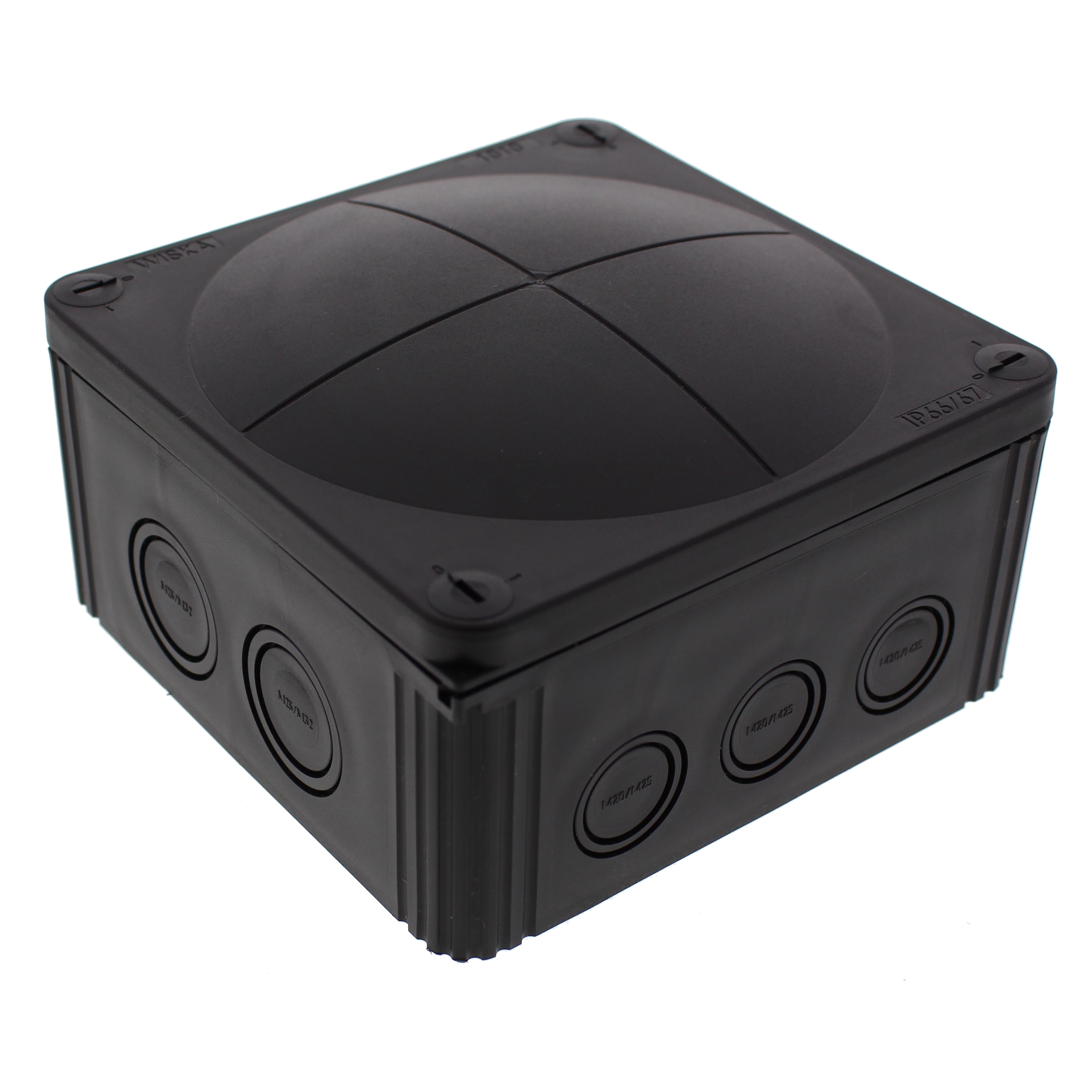

COMBI 1010/empty/black IP66/67 57A Junction box

COMBI 1010/5 57A Black
140 x 140 x 82 mm
IP66/67
Glow wire test - 750°C
Temperature range - -30°C - 100°C
Terminals/Poles - 6mm²
10 Knockouts (5x M25, 2x M20, 3x M20/M25) 4 Rear Knockouts (2x M20/M25, 2x M25/M32)
Material - Polypropylene, Gasket: TPE

Luckins No: 388975093

Carbon Foot Print:

0.47(PCF kg/piece)

Colour:

BLACK

External dimensions LxWxH:

140 x 140 x 82mm

Filling compound:

Fixing:

4 internal openings

Glow wire test:

750 ¡C

Group:

COMBI Junction Boxes

Impact resistance:

Notice:

-.../5 = Klemmeinsatz 5-polig

Ø cable diameter min:

6,0 mm, 21,0 mm

Packing unit:

Protection Class:

IP66 / IP67

Rated cross section:

10 mm_

Size:

1010

Stock:

In-Stock

Temp. range max:

100 ¡C

Terminals/Poles:

5-pole, 10,0 mm_

Type:

COMBI 1010/5 BK

Voltage:

690,0 V

Item Number: 10062215

Trade Price: £28.46

Size:

Colour:

Quantity:

Please login

Luckins No: 388975093

Carbon Foot Print:

0.47(PCF kg/piece)

Colour:

BLACK

External dimensions LxWxH:

140 x 140 x 82mm

Filling compound:

Fixing:

4 internal openings

Glow wire test:

750 ¡C

Group:

COMBI Junction Boxes

Impact resistance:

Notice:

-.../5 = Klemmeinsatz 5-polig

Ø cable diameter min:

6,0 mm, 21,0 mm

Packing unit:

Protection Class:

IP66 / IP67

Rated cross section:

10 mm_

Size:

1010

Stock:

In-Stock

Temp. range max:

100 ¡C

Terminals/Poles:

5-pole, 10,0 mm_

Type:

COMBI 1010/5 BK

Voltage:

690,0 V

COMBI 1010/5 (With Terminal) Black/White/Grey
