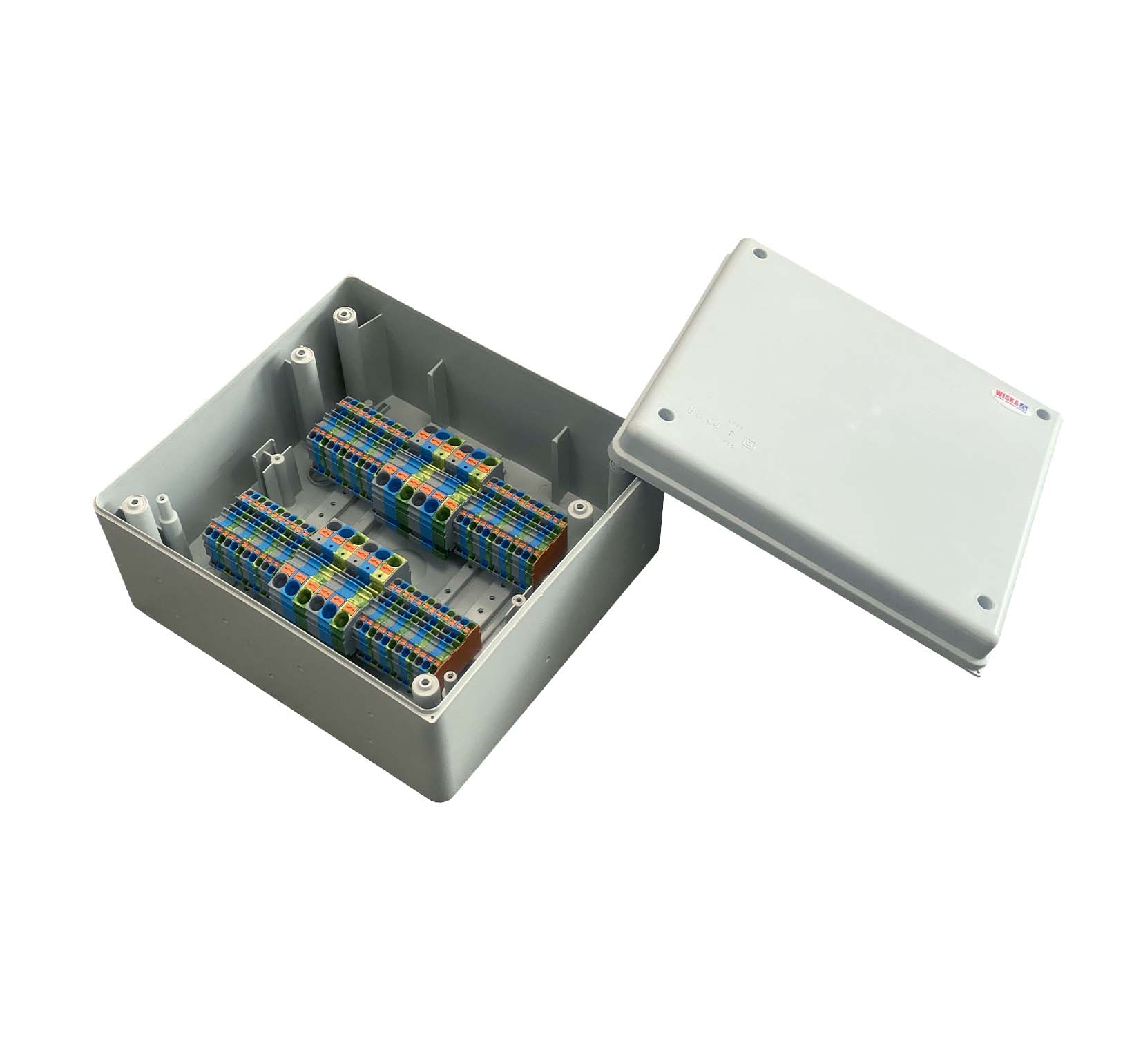

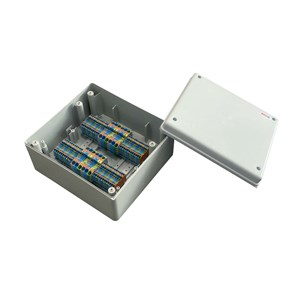

823 CUR/P Consumer Unit Relocation Kit with Push Terminals, Grey


Material Polycarbonate
Protection class IP65
Temp. range min -25 °C
Temp. range max 85 °C
Glow wire test 650 °C
Impact resistance IK08
External dimensions LxWxH 270x250x160mm
Type 823 CUR/P
UK-Number 823 CUR/P
Product Color RAL 7035
WISKA-Order no. 10112389
Packing unit 1
Description:

Suitable for relocating up to 20 ways*

Fast self-tapping stainless screws

Terminals**
2202-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 4mm (x16)
2202-1204 - Blue 2 conductor DIN-rail terminal with button push-in up to 4mm (x16)
2202-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 4mm (x16)
2002-1292 - Orange Endplate for 2202 (x2)
2210-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 16mm (x4)
2210-1204 - Blue 2 conductor DIN-rail terminal with button push-in up to 16mm (x4)
2210-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 16mm (x4)
2010-1292 - Orange Endplate for 2210 (x2)



Luckins No:

Grey
Consumer Unit Relocator
20 WAY/PUSH
In-Stock

Item Number: 10112389

Trade Price: £220.12
