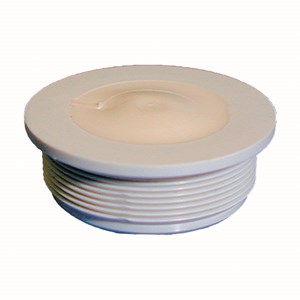

QUIXX EMT-F MEMBRANE SPOUT (M16 - M32)

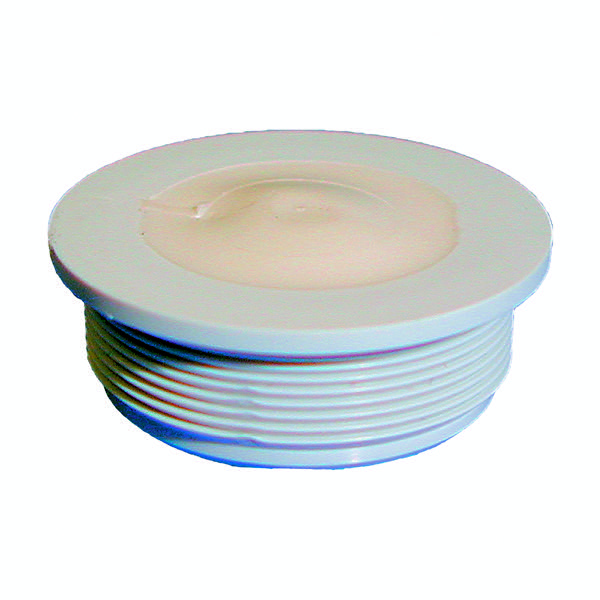

QUIXX EMT-F 20 Quixx 20mm Flame retardant spout

QUIXX Push-In (Flame Retardant)

10063009

20mm

Protection class - IP66

Glow wire test - 960°C

Temperature range - -40°C - 80°C

Material - TPE, flame retardant

Luckins No: 401405903

Carbon Foot Print:

0.01(PCF kg/piece)

Colour:

White

EAN Number:

4.00769E+12

External Diameter ED:

960 ¡C, 25,0 mm

Group:

Membrane Cable Entries

Material membrane:

0

Material Sealing Gasket:

0

Ø cable diameter max:

13,0 mm

Ø cable diameter min:

1,0 mm

Ø Connection thread D:

20

Protection Class:

IP66

Size:

M20

Stock:

In-Stock

Temp. range max:

80 ¡C

Temp. Range Min:

-40 ¡C

Total length TL:

11,0 mm

Type:

EMT-F 20 WH

Wall thickness S:

2,0 mm

Width B:

0

Item Number: 10063009

Trade Price: £0.48

Size:

Colour:

Quantity:
