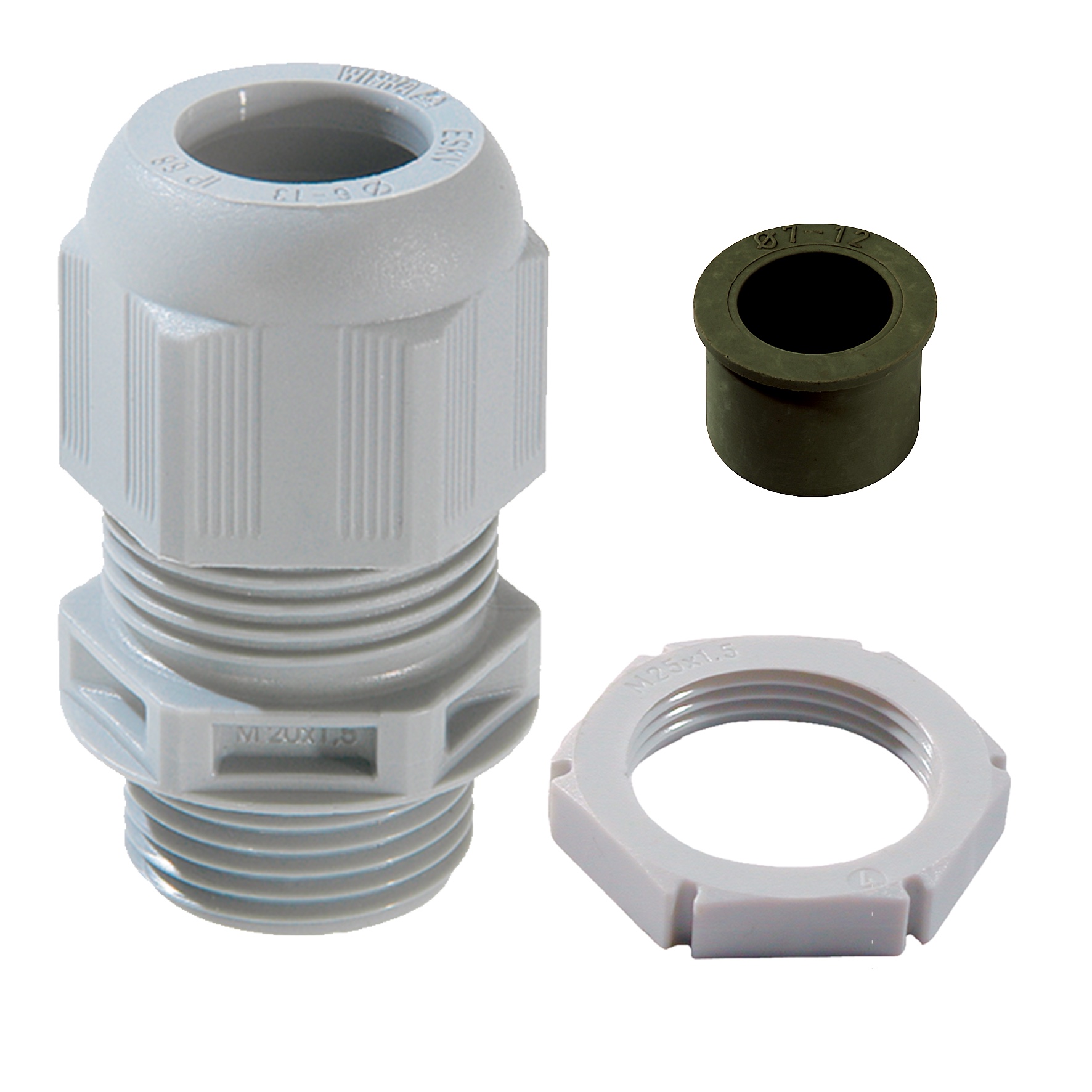

GLP20+RDE ESKV 20 Plus RDE IP68 Gland Packs (Clamping Range 4 - 14mm) (Pack of 10)

GLP20+RDE ESKV 20 Plus RDE IP68 Grey Gland packs (Clamping 4 - 14mm) (10 Glands & 10 locknuts)

Cable Gland Packs Polyamide - Reduction

Pack of 10 Glands and 10 Locknuts

10100635

M20+

Clamping range - 4 - 14mm

Thread length - 10mm

Protection class - IP68

Glow wire test - 750°C

Temperature range - -40°C - 100°C

Colour - Grey

Material - Polyamide, Gasket: EPDM

Luckins No: 391747700

Carbon Foot Print:

1.33(PCF kg/piece)

Colour:

Grey

EAN Number:

4.00769E+12

Glow wire test:

750 ¡C

Group:

Gland Packs

Impact category:

0

Material Cable Gland:

Polyamide

Material Sealing Gasket:

EPDM

Ø cable diameter max:

14,0 mm, 24 mm

Ø cable diameter min:

4,0 mm

Ø Connection thread D:

20

Packing unit:

10

Protection Class:

IP68 (5 bar 30 min), IP69

Size:

M20 +

Stock:

In-Stock

Temp. range max:

100 ¡C

Temp. Range Min:

-40 ¡C

Thread type:

M

Total length TL:

36,0 - 45,0 mm

Type:

GLP20+ RDE grey

Type of cable anchorage:

A

Item Number: 10100635

Trade Price: £14.35

Size:

Colour:

Quantity:

Please login

Cable Gland Packs Polyamide - Reduction

Pack of 10 Glands and 10 Locknuts

10100635

M20+

Clamping range - 4 - 14mm

Thread length - 10mm

Protection class - IP68

Glow wire test - 750°C

Temperature range - -40°C - 100°C

Colour - Grey

Material - Polyamide, Gasket: EPDM

Luckins No: 391747700

Carbon Foot Print:

1.33(PCF kg/piece)

Colour:

Grey

EAN Number:

4.00769E+12

Glow wire test:

750 ¡C

Group:

Gland Packs

Impact category:

0

Material Cable Gland:

Polyamide

Material Sealing Gasket:

EPDM

Ø cable diameter max:

14,0 mm, 24 mm

Ø cable diameter min:

4,0 mm

Ø Connection thread D:

20

Packing unit:

10

Protection Class:

IP68 (5 bar 30 min), IP69

Size:

M20 +

Stock:

In-Stock

Temp. range max:

100 ¡C

Temp. Range Min:

-40 ¡C

Thread type:

M

Total length TL:

36,0 - 45,0 mm

Type:

GLP20+ RDE grey

Type of cable anchorage:

A
