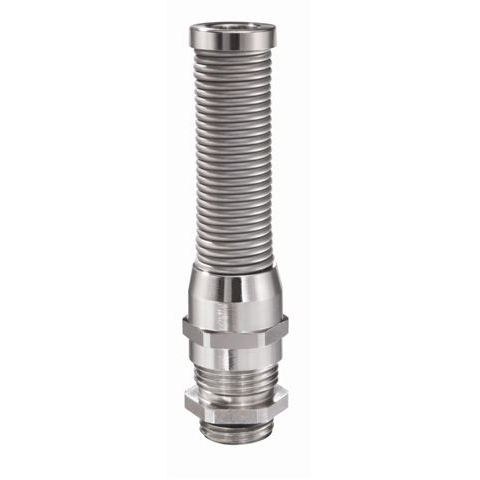

EMSKVS Metric Brass Nickel Plated Gland with Bend Protection (M16 - M63)

EMSKVS 63 IP68 Clamping Range 34-48mm (Flex Protection)

Brass Nickel Plated Cable Glands with Bend Protection

10065831

M16

Thread length - 5mm

Protection class - IP68 (5 bar 30 min) / IP69

Temperature range - -40°C - 100°C

Material - Gland: Brass nickel-plated, Clamping cage: Polyamide, Gasket: EPDM

Luckins No: 394200176

Carbon Foot Print:

0.28 (PCF kg/piece)

Colour:

Brass Nickel Plated

EAN Number:

4.00769E+12

Group:

Brass Nickel Plated Cable Glands

Impact category:

Key width SW:

20 mm

Material Cable Gland:

Brass nickel-plated

Material Sealing Gasket:

EPDM

Ø cable diameter max:

10,0 mm

Ø cable diameter min:

4,5 mm

Ø Connection thread D:

Protection Class:

IP68 (5 bar 30 min), IP69

Size:

M16

Stock:

In-Stock

Surface:

Nickel

Temp. range max:

100 ¡C

Temp. Range Min:

-40 ¡C

Thread type:

Total length TL:

76,0 - 84,0 mm

Type:

EMSKVS 16

Type of cable anchorage:

Item Number: 10065831

Trade Price: £13.80

Size:

Colour:

Quantity:

Please login

Brass Nickel Plated Cable Glands with Bend Protection

10065831

M16

Thread length - 5mm

Protection class - IP68 (5 bar 30 min) / IP69

Temperature range - -40°C - 100°C

Material - Gland: Brass nickel-plated, Clamping cage: Polyamide, Gasket: EPDM

Luckins No: 394200176

Carbon Foot Print:

0.28 (PCF kg/piece)

Colour:

Brass Nickel Plated

EAN Number:

4.00769E+12

Group:

Brass Nickel Plated Cable Glands

Impact category:

Key width SW:

20 mm

Material Cable Gland:

Brass nickel-plated

Material Sealing Gasket:

EPDM

Ø cable diameter max:

10,0 mm

Ø cable diameter min:

4,5 mm

Ø Connection thread D:

Protection Class:

IP68 (5 bar 30 min), IP69

Size:

M16

Stock:

In-Stock

Surface:

Nickel

Temp. range max:

100 ¡C

Temp. Range Min:

-40 ¡C

Thread type:

Total length TL:

76,0 - 84,0 mm

Type:

EMSKVS 16

Type of cable anchorage:

EMSKVS Metric Brass Nickel Plated Gland with Bend Protection (M16 - M63)
