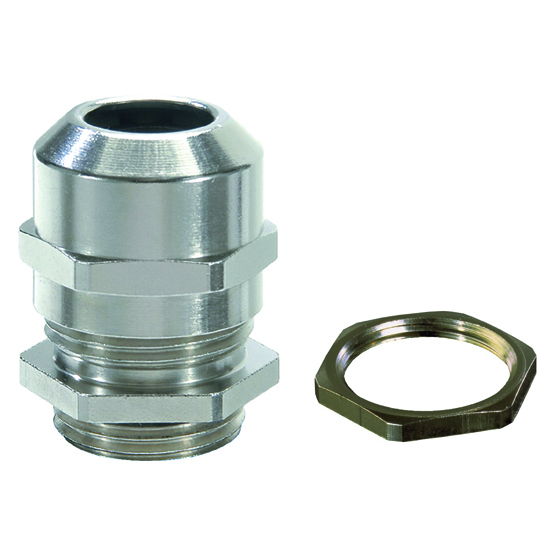

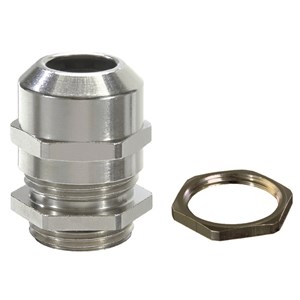

EMSKV-SET Brass Nickle Cable Gland and Locknut (M12 - M63)

Brass Nickel Plated Cable Glands C/W Locknut

10065032

M12

Thread length - 5mm

Protection class - IP68 (5 bar 30 min) / IP69

Temperature range - -40°C - 100°C

Material - Gland/Locknut: Brass nickel-plated, Clamping cage: Polyamide, Gasket: EPDM

Carbon Foot Print:

0.13 (PCF kg/piece)

Colour:

Brass

EAN Number:

4.00769E+12

Group:

Brass Nickel Plated Cable Glands

Impact category:

Key width SW:

16 mm

Material Cable Gland:

Brass nickel-plated

Material Sealing Gasket:

EPDM

Ø cable diameter max:

7,0 mm

Ø cable diameter min:

3,0 mm

Ø Connection thread D:

Protection Class:

IP68 (5 bar 30 min), IP69

Stock:

Out of Stock

Surface:

Nickel

Temp. range max:

100 ¡C

Temp. Range Min:

-40 ¡C

Thread type:

Total length TL:

23,0 - 30,0 mm

Type:

EMSKV-SET 12

Type of cable anchorage:

Item Number: 10065032

Trade Price: £3.24

Size:

Colour:

Quantity:

Please login

Brass Nickel Plated Cable Glands C/W Locknut

10065032

M12

Thread length - 5mm

Protection class - IP68 (5 bar 30 min) / IP69

Temperature range - -40°C - 100°C

Material - Gland/Locknut: Brass nickel-plated, Clamping cage: Polyamide, Gasket: EPDM

Carbon Foot Print:

0.13 (PCF kg/piece)

Colour:

Brass

EAN Number:

4.00769E+12

Group:

Brass Nickel Plated Cable Glands

Impact category:

Key width SW:

16 mm

Material Cable Gland:

Brass nickel-plated

Material Sealing Gasket:

EPDM

Ø cable diameter max:

7,0 mm

Ø cable diameter min:

3,0 mm

Ø Connection thread D:

Protection Class:

IP68 (5 bar 30 min), IP69

Stock:

Out of Stock

Surface:

Nickel

Temp. range max:

100 ¡C

Temp. Range Min:

-40 ¡C

Thread type:

Total length TL:

23,0 - 30,0 mm

Type:

EMSKV-SET 12

Type of cable anchorage:
